NanoStation installs

NanoStation NSM5 installs

Hardware

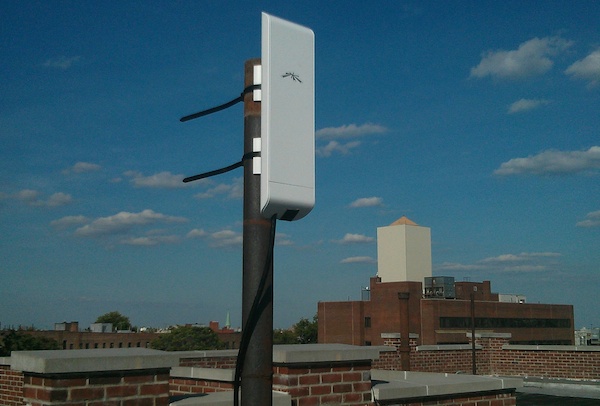

The simplest install is to use an existing vertical pipe and the two plastic ties that are included with the router. Also a thick PVC pipe can be attached to a railing using clamps.

roof install

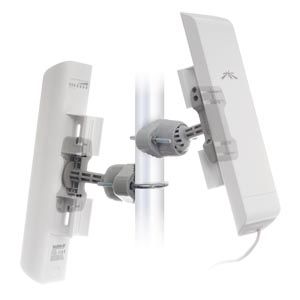

If you need to aim the router up or down you can use a nanobracket.

nanobracket

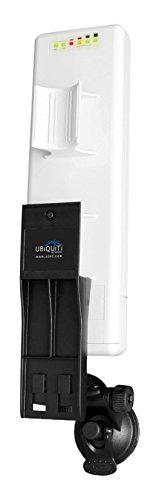

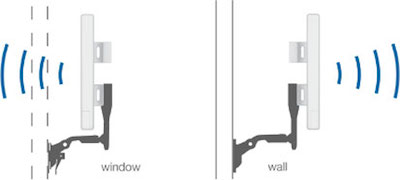

The Ubiquiti window/wall mount is a versatile mount that comes with a suction cup for windows or a screw mount for walls. The parts are reversible so the NSM5 can face either way and it also has vertical and horizontal adjustment to point in almost any direction.

window/wall install

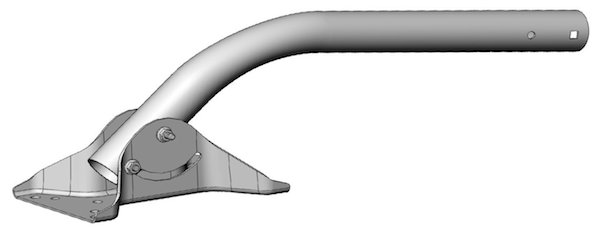

The Ubiquiti universal antenna mount can be used on rooftops or walls, where a very strong mount is needed.

universal antenna mount

Window

Outside:

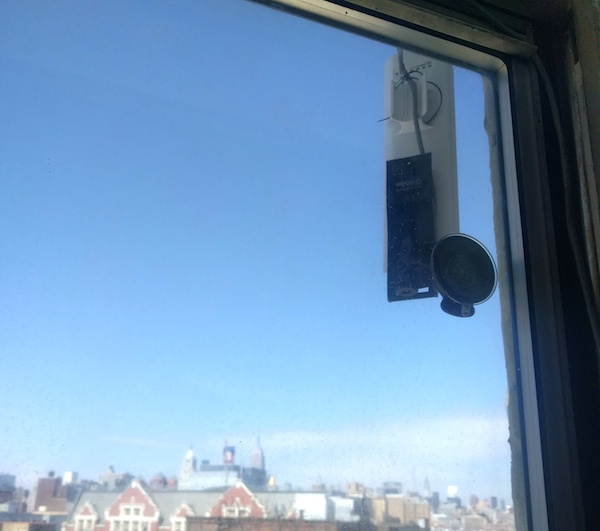

On the outside of the window it is best to use a Ubiquiti wall/window mount. The suction cup is not recommended for long-term installs.

window outside

Inside:
It is often more convenient to install inside the window. You will lose about 2db of signal but that is usually ok.

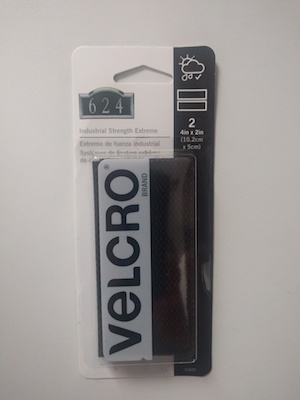

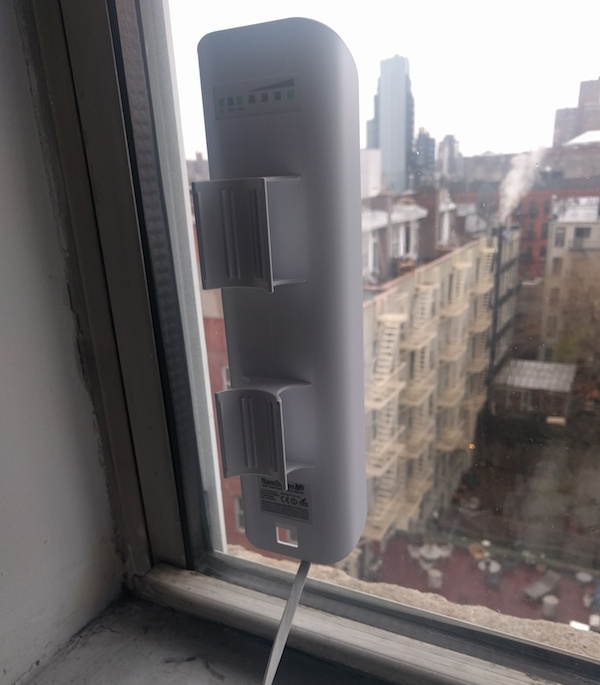

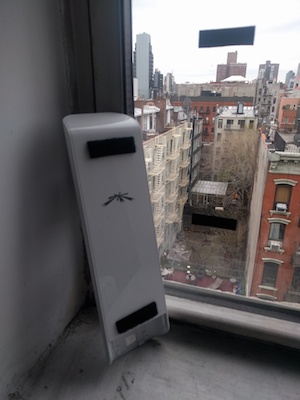

Velcro is the easiest way to install a NanoStation if it will be facing the same direction as the window. Use more velcro than in the picture (this install slipped down the window after six months!)

velcrovelcro

window velcro

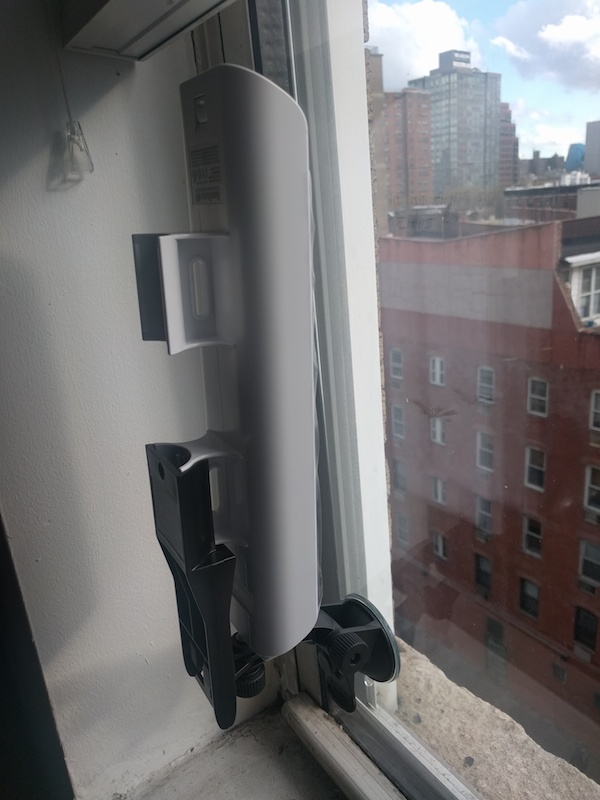

A Ubiquiti suction cup mount can be used if you need to point the router at an angle. The suction cup will fail eventually (usually on very hot or very cold days), so do not use this for long-term installs.

window/wall install

Rooftop

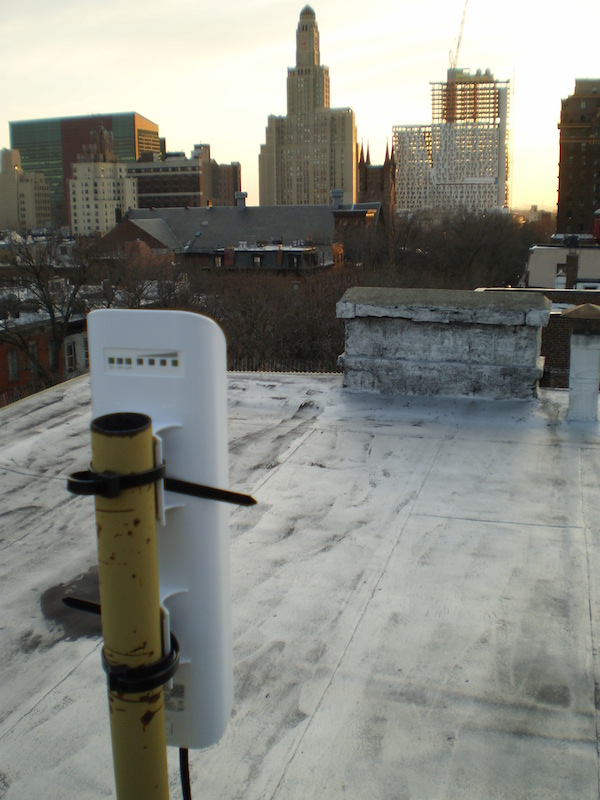

Often rooftops have an existing unused pipe or abandoned antenna pole that can be used.

pipe

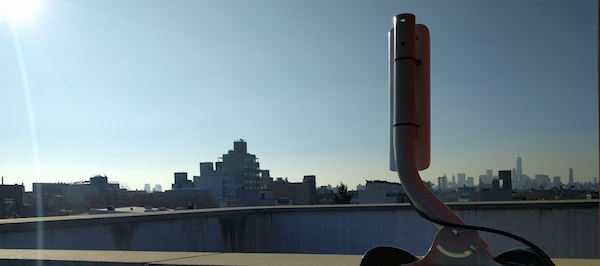

A Ubiquiti bracket is good if you have a drillable surface such as brick or cement.

bracket

Wall

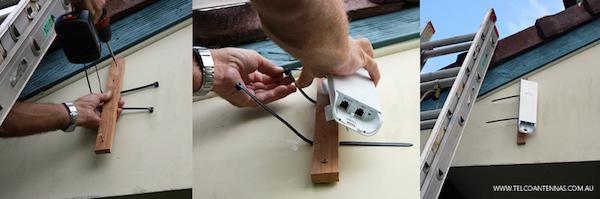

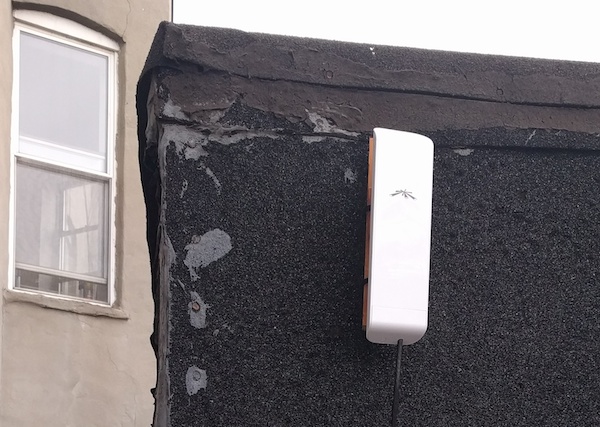

A simple wall mount can be made using a small, thin piece of wood and the two plastic ties that come with the router. This will not give you much choice in direction.

window/wall install source

window/wall install

The Ubiquiti window/wall mount comes with both a suction cup for windows and a screw mount for walls. Use this screw mount on a wall so you can point the router in the best direction.

window/wall installwindow/wall install

Tree

Sometimes a tree is the best place for your NanoStation.

tree

Ethernet

Outdoor routers use “power over ethernet” (POE). A small adapter is used to add power to the ethernet. This means you only need to run one ethernet cable to the device.

The most important thing about the cable and is that it is “outdoor” cable. Otherwise the plastic will decay in the weather. We use Cat 5e. A cable run must be less than 100m (300 feet), or the signal and voltage drop will be too much.

There are two ethernet ports on the NanoStation and these are a source of confusion. Like most outdoor routers they get their power over the ethernet cable. They come with an adapter that adds 24V of power to the cable. Be careful plugging live cables into ports that are not expecting a voltage.

Here are two ways to wire your NSM5:

Setup 1 (client)

You are connecting to a remote gateway that is providing your internet. You plug the ethernet cable into the “main” (LAN) port of the NSM5. The cable goes to the power adapter POE. “LAN” on the POE adapter goes to the WAN of an indoor router.

(Sometimes people are close enough to the NSM5 that they don’t bother with the indoor router.)

Setup 2 (gateway)

You are sharing your existing internet with your neighbors. You plug the ethernet into the “secondary” (WAN) port of the NSM5. The cable goes to the power adapter POE. “LAN” on the POE adapter goes to the LAN of your existing indoor router.

Powering two from one adapter

If you need to install two NanoStations you can simply run a cable from the spare ethernet port to the other NSM5. If the POE is plugged into the secondary port (gateway setup) then the “main” will act as passthrough to the second NSM5.

To turn on passthrough from main to secondary you need to do this (source)-

# older nanostation XM (pre-2015)
echo 8 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio8/direction
echo 1 > /sys/class/gpio/gpio8/value
# disable with echo 0 > /sys/class/gpio/gpio8/value
# nanostation XW (2015-)
echo 2 > /sys/class/gpio/export
echo out > /sys/class/gpio/gpio2/direction
echo 1 > /sys/class/gpio/gpio2/value
# disable with echo 0 > /sys/class/gpio/gpio2/value

I’ve found this setting doesn’t stick after reboot, so you need to add it to /etc/rc.local (local startup)-
http://admin.qmp/cgi-bin/luci/admin/system/startup

LAN vs WAN confusion

On the NSM5 the “main” port is LAN and the secondary is “WAN”. This is the most confusing thing about the router and mixing this up is the cause of most problems. Always connect WAN on one router to LAN on another!

If you connect LAN to LAN it will be unstable as each LAN port usually has a DHCP server and both ports will be trying to assign an IP address to the other. Also don’t connect WAN to WAN as this makes no sense. This is by far the biggest problem with people setting up routers and it is so simple to avoid.
